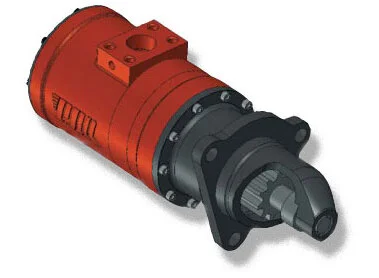

PRQ-22i Turbine Starter



PRQ-22i Turbine Starter

Pinions and flanges to American engine

  • Lightweight - 26 lbs - 12 kg

  • Steel and aluminum construction - No plastic parts

  • Lubed for Life - gear case and bearings

  • Clean - No lube in airstream required - No fugitive emissions

  • Straight and 90 degrees exhaust adapte

  • Models to start diesel engines up to 22 liter (44 liter gas)

  • Repair Kits and most popular accessories available

Three nozzle configurations are used on the Series 22 starters where the pressure is considered low at 30 psi to 90 psi. Standard pressure from 90 psi to 120 psi and high pressure applications from 120 psi to 180 psi. The starter drive clutch setting is the main determining factor when choosing the correct starter. If the starter is pressurized beyond its stated pressure too much torque would be created that could damage the starter drive. Ask your PRQ representative for advice on choosing the correct model starter for your applications.

The 22 Series turbine requires no lubrication in the air stream, due to the turbine having no rubbing parts. All bearings are lubed for life.

The 22 Series as well as all air starters require clean air, filters or strainer are strongly recommended to prevent foreign object damage to the rotating turbine wheels and stators. An electric time delay is offered to prevent start attempts in a no start situation before the turbine wheels have stopped rotating.

Straight and 90° degree exhaust adaptors are available from PRQ. Because the 22 series is shorter and has a lesser diameter than some competitors starter models, an adaptor is available that would allow the 22 series to bolt up to existing exhaust plumbing to facilitate starter change out.

Hardware Only Kits

  • 55-70011 Turbine Motor Hardware Kit

  • 55-70012 Overhung Hardware Kit

Valves

  • 6-5-108g Gas Rated Push Button Pilot Valve

  • 55-59004 Shuttle Valve (Air Only)

  • 55-59005 Quick Exhaust Valve (Air Only)

  • 55-59008 Gas Rated Pilot (12V)

  • 55-59009 Gas Rated Pilot (24V)

  • 6-5-108 Push Button Pilot Valve

  • 5-19205 1" Quick Opening Valve

  • 6-5-113 1.25 Relay Valve

  • 6-53-129 12V Solenoid Valve (Air)

  • 6-53-129 24V Solenoid Valve (Air)

Miscellaneous Accessories

  • 55-59006 Delay Timer (12V) (Air Only)

  • 55-59007 Delay Timer (24V) (Air Only)

Motor service kit*

  • 55-70002 High Turbine Service Kit

  • 55-70003 Std-Turbine Service Kit

  • 55-70004 Low-Turbine Service Kit

  • 55-70008 Inertia and Overhung Gear Service Kit

Hardware Only Kits

  • 55-70011 Turbine Motor Hardware Kit

  • 55-70012 Overhung Hardware KitInlet Air Strainer

  • 55-59000 1"- 40 Micron Strainer

  • 55-59001 1.5"- 40 Micron Strainer

Exhaust Adaptor and Muffler

  • 55-59002 Straight Exhaust Adapter

  • 55-59003 90° Exhaust Adapter

  • 6-5-104 Muffler

  • 6-6-012 Close Nipple

  • 55-29010 2" NPT Exhaust Valve Flapper
